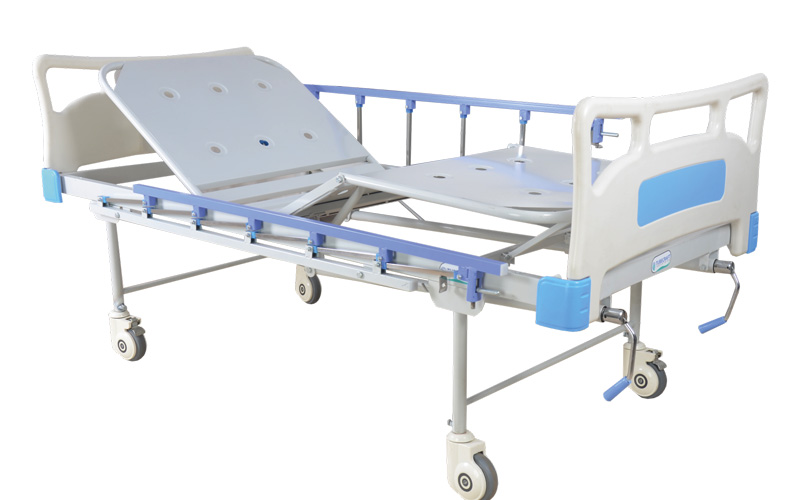

Fowler Bed (Double Screw) Deluxe
Tube Craft ID : TCI - HF - 310
Technical Specifications | ||
Dimensions | 78" x 33" x 22" ht | |
Mattress Platform | 78" x 33" x 3" | |
Optional Accessories | ||
Foam Mattress | ||
I.V. Bar |
Other Details | ||
Manual Operated by 2 screws, 1st for head up & head low panel position, 2nd knee bend panel, leg panel adjustable on ratchet bar. | ||
Bed frame made in M.S. rectangular 60 x 30 mm heavy gauge pipes. (For deluxe bed). | ||
Bed frame made in M.S. rectangular 50 x 25 mm heavy gauge pipes. (For regular bed). | ||
Legs made in M.S. 32 OD (out side dia.) heavy gauge round pipes with bush. | ||
Fiber Bows (Head & Foot) made in high quality of fiber. | ||
Head side 2 I.V. Bar provision & 2 side urine bags hooks provided. | ||
Total bed epoxy powder coated. | ||
Also available in 5" Dia. caster wheels. |

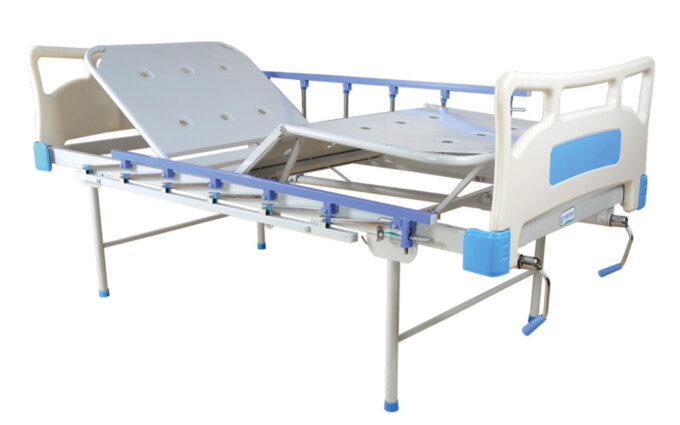

Fowler Bed (Double Screw) Deluxe 1
Tube Craft ID : TCI - HF - 310 A

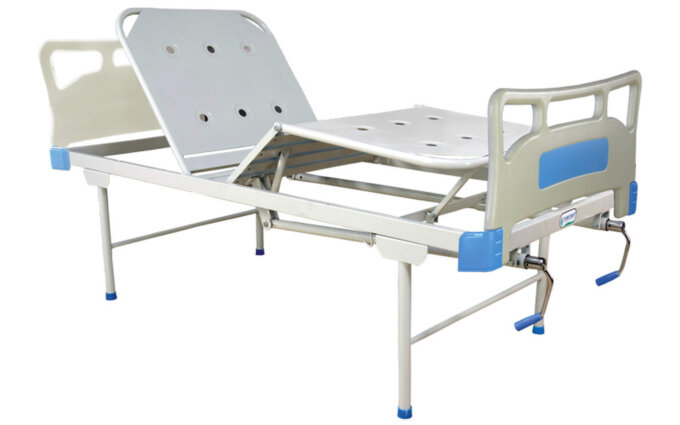

Fowler Bed (Double Screw) Deluxe 2
Tube Craft ID : TCI - HF - 310 B

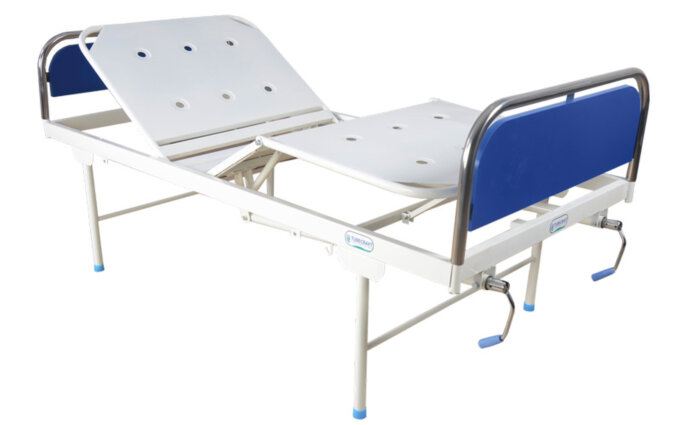

Fowler Bed (Double Screw) Regular 2
Tube Craft ID : TCI - HF - 310 D

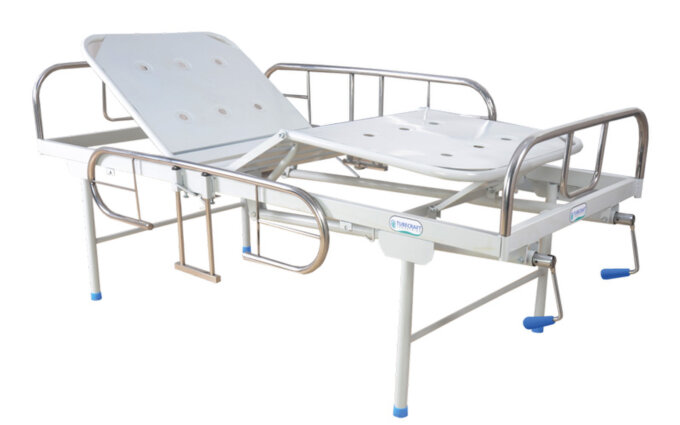

Fowler Bed (Double Screw) Regular 1
Tube Craft ID : TCI - HF - 310 C
