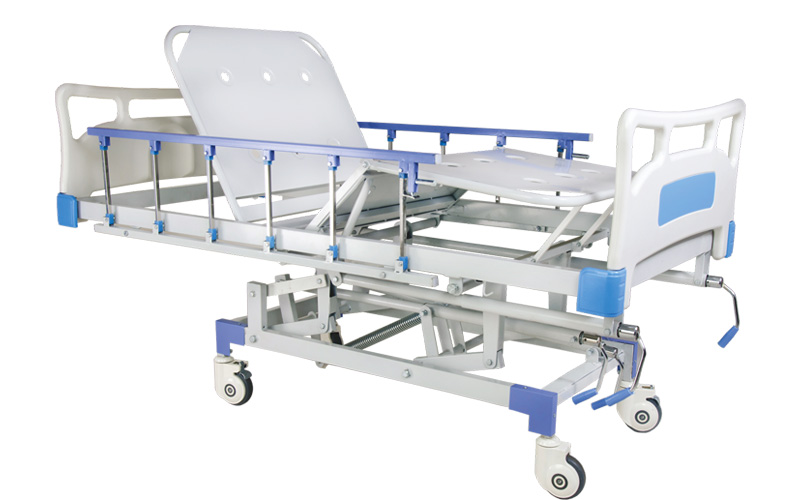

I.C.U Bed (Regular)
Tube Craft ID : TCI - HF - 302 A
Technical Specifications | ||
Dimensions | 80" x 35" x 24" to 32" ht | |
Mattress Platform | 78" x 33" x 3" | |
Optional Accessories | ||
Foam Mattress | ||
Chart Holder |
Other Details | ||
Manual operated by 4 screws | ||
1st screw for height adjustment, 2nd screw for tilting bed, 3rd screw for head up position panel, 4th screw for knee bend panel, leg panel adjustable on ratchet bar. | ||
Bed frame made of M.S. rectangular 60 x 30 mm heavy gauge pipes. | ||
Polymer bows (Head & Foot) in high quality of fiber. | ||
M.S. powder coated collapsible side railing. | ||
Polymer Bows side railing. | ||
Heavy duty Dai. 5" caster wheels with 2 break wheel in opposite directions. | ||
4 side I.V. Bar provision & 2 side urine bags hooks provided. | ||
Total bed epoxy powder coated. |
